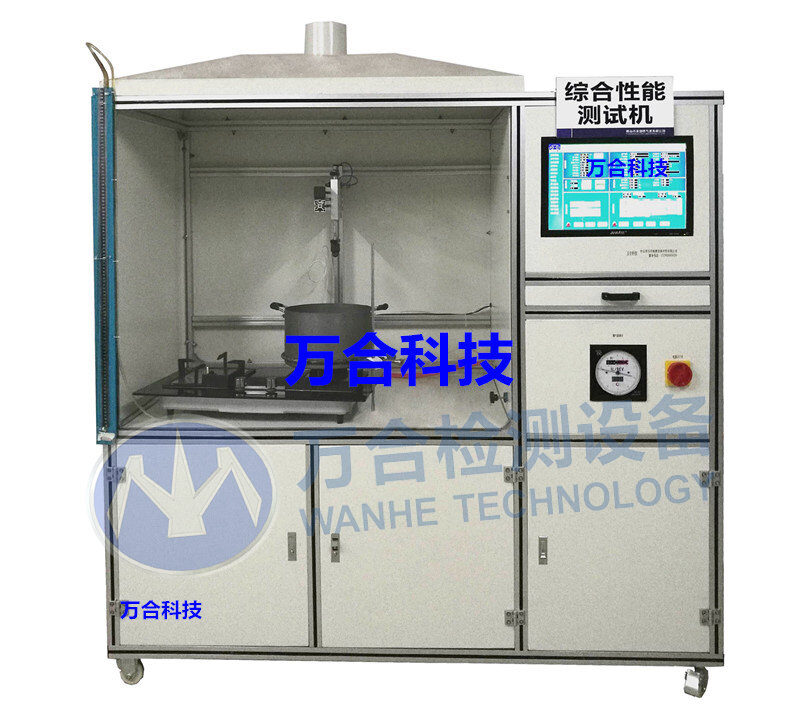

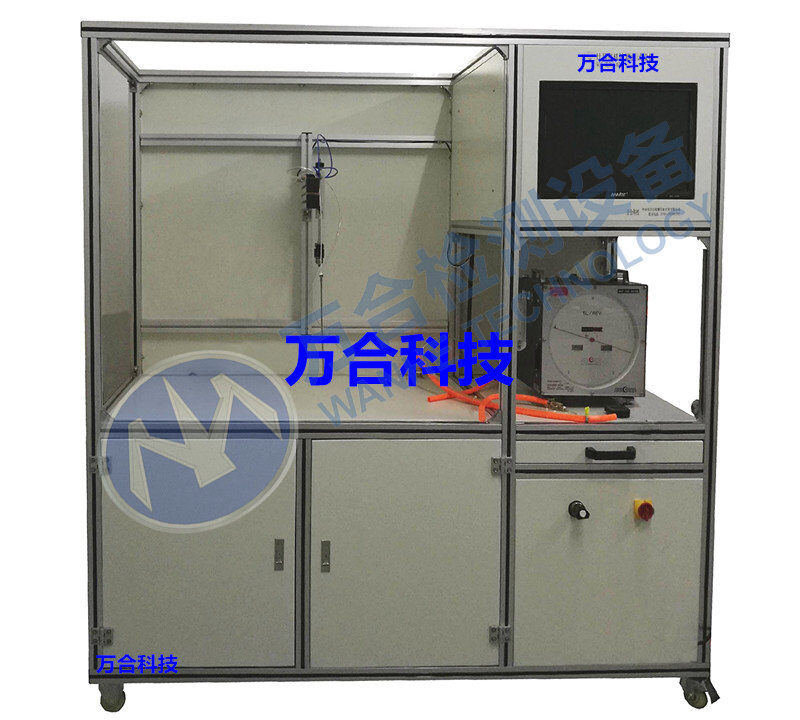

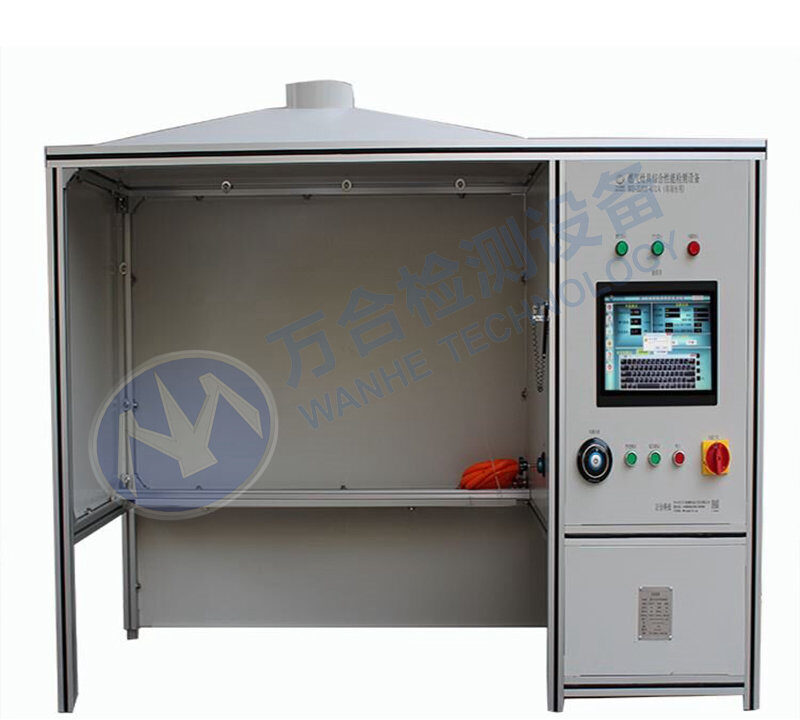

Gas Appliance Test Bench (WH-RQ)

The Gas Appliance Test Bench (Model WH-RQ) is a configurable end-of-line and laboratory platform for gas stoves, gas cookers, wall-hung boilers and gas water heaters. Instead of buying a separate machine for every appliance type, manufacturers use the WH-RQ to run combustion-performance, safety-protection and thermal-efficiency tests on a single frame with interchangeable fixtures. The bench performs 12+ test items, supports both LPG and natural gas, and records every measurement with 0.5-class accuracy and an automatic pass/fail verdict.

This is the broadest station in the Wanhe range and the recommended starting point when one plant builds several gas-appliance categories or shares a single QC line across products. Test methods are aligned with EN 30, EN 26, EN 15502, GB 16410 and IEC 60335, so the same bench can support both production QC and certification preparation. Each unit produces a traceable report that quality teams can attach to each production batch.

What the Bench Tests

• Ignition & flame stability — ignition success, flame retention and stability at rated and boundary pressures.
• Thermal efficiency & heat input — useful-heat measurement against the rated specification; see thermal efficiency & CO emission testing.
• Gas tightness — pressure-decay leak detection on the gas circuit; see the gas tightness & flame failure test standard.
• Flame failure protection — response and gas shut-off timing when the flame is extinguished.
• CO emission & surface temperature — combustion quality and safety-temperature checks for export markets.
• Water flow & temperature (heater mode) — flow rate, inlet/outlet temperature and hot-water performance.

Standards & Compliance

The WH-RQ is configured to the standards of each target market. Gas cookers follow EN 30-1-1 requirements and China’s GB 16410 gas cooker standard; gas water heaters follow EN 26 and GB 6932; wall-hung and combi boilers follow EN 15502 and EN 297; general electrical safety for gas appliances follows IEC 60335-2-102. Our comparison of EN 26 vs EN 30 for water heaters and cookers explains how the methods differ. Wanhe supplies the measurement data and technical files your notified body needs — see certifications.

How the Test Sequence Works

1. Mount the appliance on the interchangeable fixture and connect gas, water and exhaust sensors.
2. Select the appliance type and standard on the touch-screen HMI; the PLC loads the corresponding thresholds.
3. The bench runs the automated sequence — ignition, combustion, efficiency, tightness, flame failure and emission checks.
4. Results are logged in real time, compared with limits and presented as a pass/fail report for export.

Key Features

• 12+ test items on one platform with interchangeable appliance fixtures.
• LPG / natural gas dual-gas supply (town gas on request).
• 0.5-class pressure and flow measurement with automatic data logging.
• 1–6 stations and PLC/MES connection for high-volume lines.
• Automatic pass/fail judgment and printable/exportable batch reports.

Production QC vs. Type Testing

Applications

• Gas stove & cooker factories — combined combustion, efficiency and safety QC; see the dedicated gas stove test bench.
• Wall-hung boiler plants — thermal efficiency and gas tightness; see the wall-hung boiler test bench.
• Water heater makers — flow, temperature and CO checks; see the gas water heater test bench.
• Certification laboratories — EN 30 / EN 26 / IEC type testing with traceable data.

Related Installations

The same standardized item set is used in real export lines — see the gas stove export QC bench in Thailand and the integrated cooker test bench in China. For a production-line-only station, compare the gas stove production test bench.

Why Manufacturers Choose Wanhe

Wanhe Testing (Zhongshan, Guangdong) has designed and built gas-appliance test benches for appliance makers and certification laboratories for more than 15 years. Each bench is manufactured and calibrated in-house, ships with a 1-year warranty plus lifetime technical support, and can be OEM/ODM customised for your gas type, station count and data format. You can review our compliance credentials on the certifications & compliance page, compare the factory-direct model on Factory Direct, and read a buyer-focused checklist in how to choose a test-equipment manufacturer.

• Direct manufacturer — factory pricing, no trading-company margin; see factory direct vs trading company.
• Traceable results — 0.5-class pressure and flow measurement with automatic pass/fail reporting.
• Custom engineering — LPG/NG/town-gas, 1–6 stations, PLC/MES connection and custom fixtures; see custom lead time.
• Export documentation — CE/ISO support and technical files for target-market certification.

Request a Configuration & Quotation

Send us your appliance models, target markets and the standards you must meet (EN, IEC, GB or ANSI). Wanhe engineers will propose a station layout, confirm the measurement ranges and provide a quotation with lead time and MOQ. Use the contact form, or review typical budget ranges in our gas test equipment price guide.

Frequently Asked Questions

Is this a gas stove test bench or a universal gas appliance bench?

The WH-RQ is the universal version. It covers stoves, cookers, boilers and water heaters using interchangeable fixtures; the dedicated gas stove test bench (WH-ZJ01) is optimised for stove-only lines.

Which standards are supported?

The bench is configured per order for EN 30, EN 26, EN 15502, GB 16410, GB 6932 and IEC 60335-2-102. Tell us your target markets and we confirm the exact test methods and thresholds.

Can it connect to our factory MES?

Yes. The PLC and data system can export results in standard formats and connect to MES/SPC systems; multi-station layouts are described in our custom lead-time guide.
